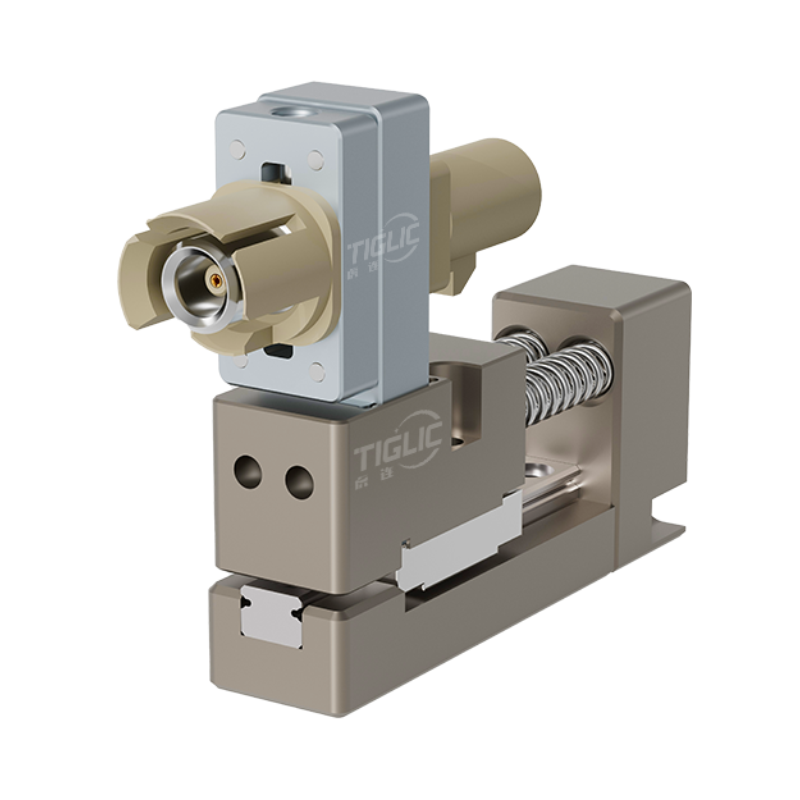

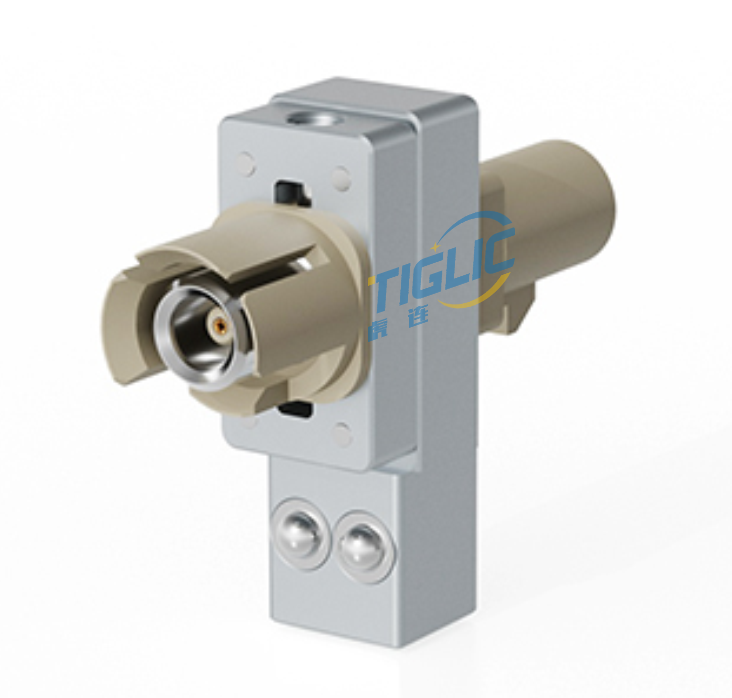

DG-LMA9502(正向)

虎连汽车电子模组FAKRA公转母测试头

Characteristic Impedance50Ω±5%
Frequency RangeDC-6GHz
Contact Impedance15mΩMax
Insulation Impedance500MΩMin
Operating Temperature-40°C~105°C
插拔力2-15NMax
寿命10000次Min
Get a quote now
Compare

FAKRA 测试模组专为汽车射频线束量产检测设计，采用前后缓冲浮动插接结构，可弥补 0.5~1mm 装配公差；产品通过 100000 次耐久插拔测试，满足车规 15000 次行业标准，内置 30Ω 匹配阻抗，紧凑结构适配狭小工位，广泛用于车载导航、车载天线线束出厂导通与射频性能检测。

Additional parameters:
Material: Gold-plated zinc alloy outer shell, high-temperature resistant engineering plastic insulator.
Customizable options: number of chambers, FAKRA male/female connectors, cable direction.
Supporting documents: 3D drawings, product specifications, third-party insertion/removal test reports
Certifications: RoHS compliant, meets USCAR-17 automotive standards
