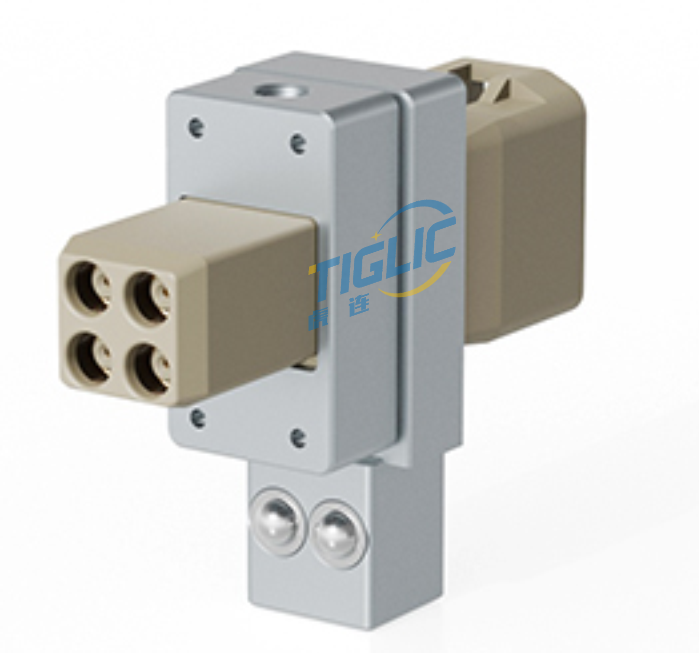

DG-LMB0301 （TE 正向）
虎连汽车电子测试模组miniFAKRA测试模组TE（正向）
| Characteristic Impedance | 50Ω±5% |
|---|---|
| Frequency Range | DC-9GHz |
| Contact Impedance | 15mΩ Max |
| Insulation Impedance | 500MΩ Min |
| Operating Temperature | -40℃~105℃ |
| 插拔力 | 2-15N Max |
| 寿命 | 10000次 Min |
| 端面插入深度 | 11.2mm |

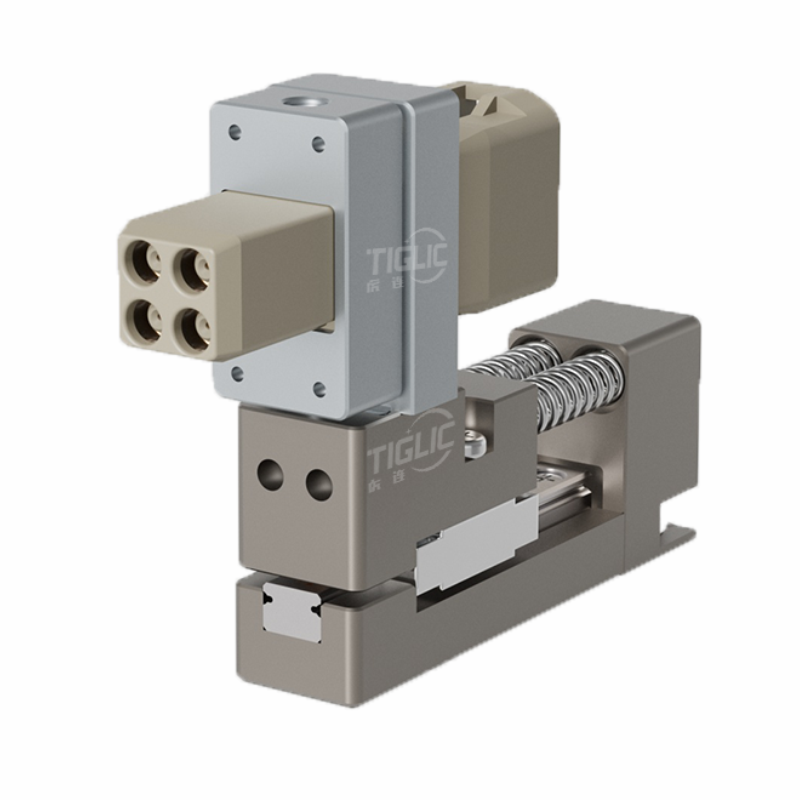

MINI FAKRA DG-LMB0301 （TE）测试模组专为汽车自动化测试设计，采用前后缓冲浮动插接结构，可弥补 0.5~1mm 装配公差；产品通过 100000 次耐久插拔测试，满足车规 15000 次行业标准，内置 30Ω 匹配阻抗，紧凑结构适配狭小工位，广泛用于车载导航、车载天线线束出厂导通与射频性能检测。
Additional parameters:
Material: Gold-plated zinc alloy outer shell, high-temperature resistant engineering plastic insulator.
Customizable options: number of chambers, FAKRA male/female connectors, cable direction.
Supporting documents: 3D drawings, product specifications, third-party insertion/removal test reports
Certifications: RoHS compliant, meets USCAR-17 automotive standards
