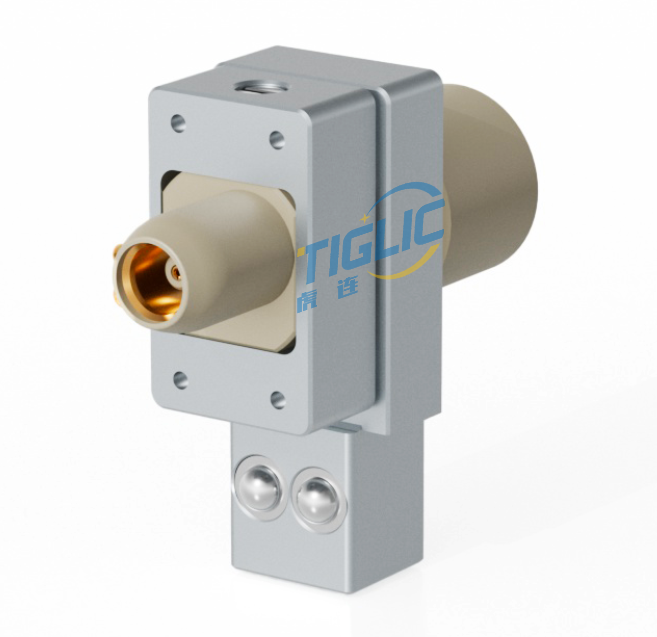

DG-LMB4601
虎连汽车电子测试模组FAKRA测试头2pin
| Characteristic Impedance | 50Ω±5% |
|---|---|
| Frequency Range | DC-6GHz |
| Contact Impedance | 15mΩ Max |
| Insulation Impedance | 500MΩ Min |
| Operating Temperature | -40℃~105℃ |
| 寿命 | 10000次 Min |
| 端面插入深入 | 7.5mm |

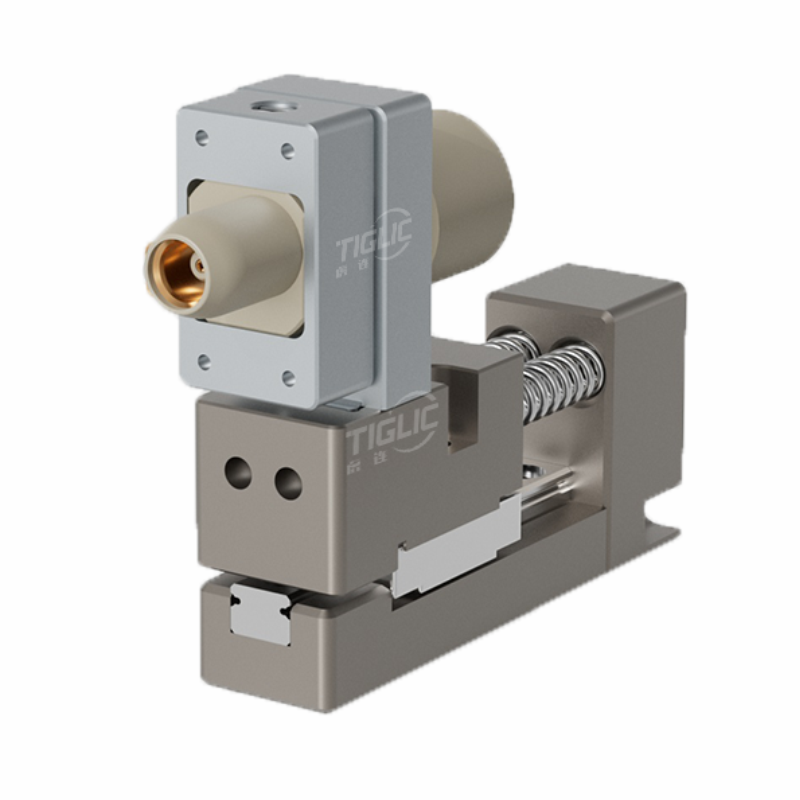

FAKRA测试头2pin专为汽车射频线束量产检测设计，采用滑轨底座与前后缓冲浮动插接结构，可有效弥补0.5~1mm装配公差，确保测试过程稳定可靠；产品通过10000次耐久插拔测试，满足车规级行业标准，内置特性阻抗50Ω±5%，频率范围覆盖DC-6GHz，紧凑结构适配狭小工位，广泛用于车载导航、车载天线线束出厂导通与射频性能检测
Additional parameters:
Material: Gold-plated zinc alloy outer shell, high-temperature resistant engineering plastic insulator.
Customizable options: number of chambers, FAKRA male/female connectors, cable direction.
Supporting documents: 3D drawings, product specifications, third-party insertion/removal test reports
Certifications: RoHS compliant, meets USCAR-17 automotive standards
